Atlas 9KBPX Baseplate 2-Post Car Lift – 9,000 lb Capacity
The Atlas 9KBPX Baseplate 2-Post Car Lift is a heavy-duty vehicle lift built for safe, stable lifting and easy access to the underside of your vehicle.
The Atlas 9KBPX is a well-engineered baseplate-style two-post car lift designed for garages with low ceilings. Unlike overhead-style lifts, which require significant ceiling clearance, this model’s total column height of 111 ½ inches (9 feet 3 ½ inches) makes it suitable for most residential and commercial garages with ceilings as low as 9 feet 6 inches.
This lift features a “chain over roller” lifting system, ensuring smooth operation and durability. The dual hydraulic chain-drive cylinders provide reliable lifting power, while the automatic arm restraints secure vehicles in place for added safety.
It is an excellent choice for homeowners and small commercial shops looking to service a variety of vehicles, including cars, SUVs, and light-duty trucks. However, it is not recommended for lifting diesel dually or other large trucks, as it is specifically designed for lighter vehicles.
Key Features
- 9,000 lb. Lifting Capacity
- Baseplate, Open-Top Style Lift
- Designed for Low Ceiling Clearance
- Symmetric Arms for Balanced Lifting
- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System (SLS) for Safety
- Automatic Arm Restraints
- Dual Point Lock Release
- 8-Piece Truck Adapter Set
- Mounting Hardware Included
Specifications
| Lifting Capacity | 9,000 lbs. |
|---|---|

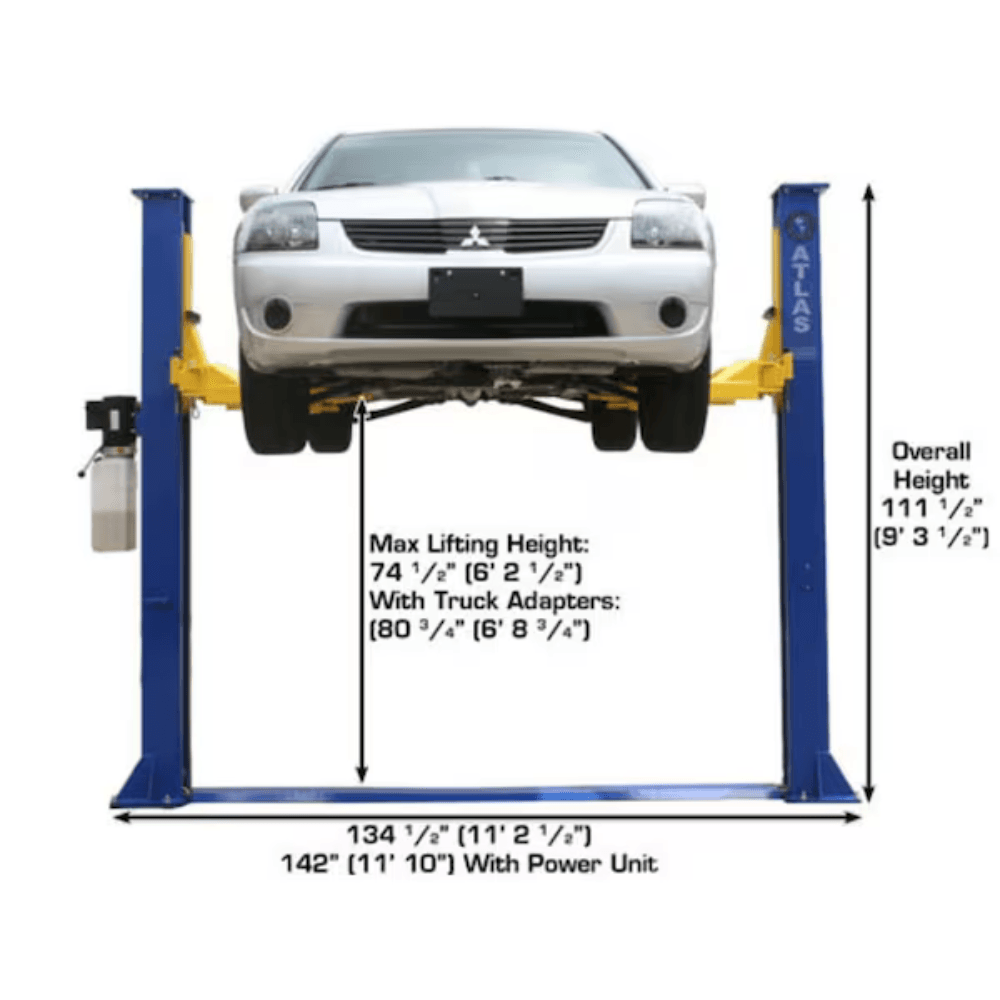

| Overall Height | 111 ½” (9′ 3 ½”) |
| Overall Floor Width | 134 ½” (11′ 2 ½”) |
| Outside Column to Outside Column Width | 124 ⅞” (10′ 4 ⅞”) |
| Maximum Lift Height (Without Adapters) | 74 ½” |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Arm Height | 4″ |
| Inside Column Width | 110″ (9′ 2″) |
| Drive-Thru Width | 101″ (8′ 5″) |
| Column Size | 7 ¼” x 11″ |
| Column Steel Thickness | 5mm |
| Baseplate Size | 14 ¼” x 18 ¼” |
| Motor/Electrical Requirements | 220V, Single Phase, 30 Amp Breaker Recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights | 4 at 1.5″, 4 at 5″ |
| Arm Hole/Adapter Peg Size | 1.5″ |
Ideal For
The Atlas 9KBPX Baseplate 2-Post Car Lift is ideal for professional repair shops, home garages and DIY mechanics.
