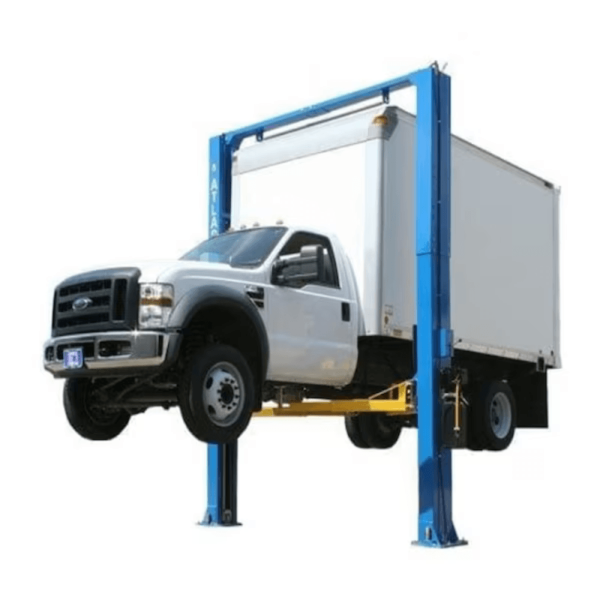

Atlas PV12PX Commercial Overhead 2-Post Car Lift – 12,000 lb Capacity
Based on 1,248 reviews
$1,189.79
Payment Methods:
Description
Atlas PV12PX Commercial Overhead 2-Post Car Lift – 12,000 lb Capacity
The Atlas PV12PX Commercial Overhead 2-Post Car Lift is a heavy-duty vehicle lift built for safe, stable lifting and easy access to the underside of your vehicle.
The Atlas PV series represents the absolute best value for the customer who demands a heavy-duty professional grade two post lift at the lowest possible price. Atlas has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bulletproof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas PV series models. The Atlas PV12PX is a commercial grade lift designed to accommodate both long wheel-base trucks and because of a low pad height, passenger cars. The distance between the symmetrical columns is 123″ with a drive through space of 109″. The extra distance between the symmetrical columns will allow the widest of vehicles or vehicles with wide rearview mirrors to be lifted or driven through. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long wheel-base trucks with a variety of running boards. The extra height means extra clearance allowing you to lift vans and box trucks without worry. The Atlas ATEXH-PV12PX features three height settings, the lowest setting of 150 inches or 12 foot 6 inches requires the purchase of extra short cables.
Key Features
- 12,000 lb. capacity
- Extra Tall & Extra Wide
- Commercial Grade
- Adjustable height 150″ (12′ 6″) or 165″ (13′ 9″) or 177″ (14′ 9″)
- Special low height 150″ (12′ 6″) (Requires purchase of extra cables)

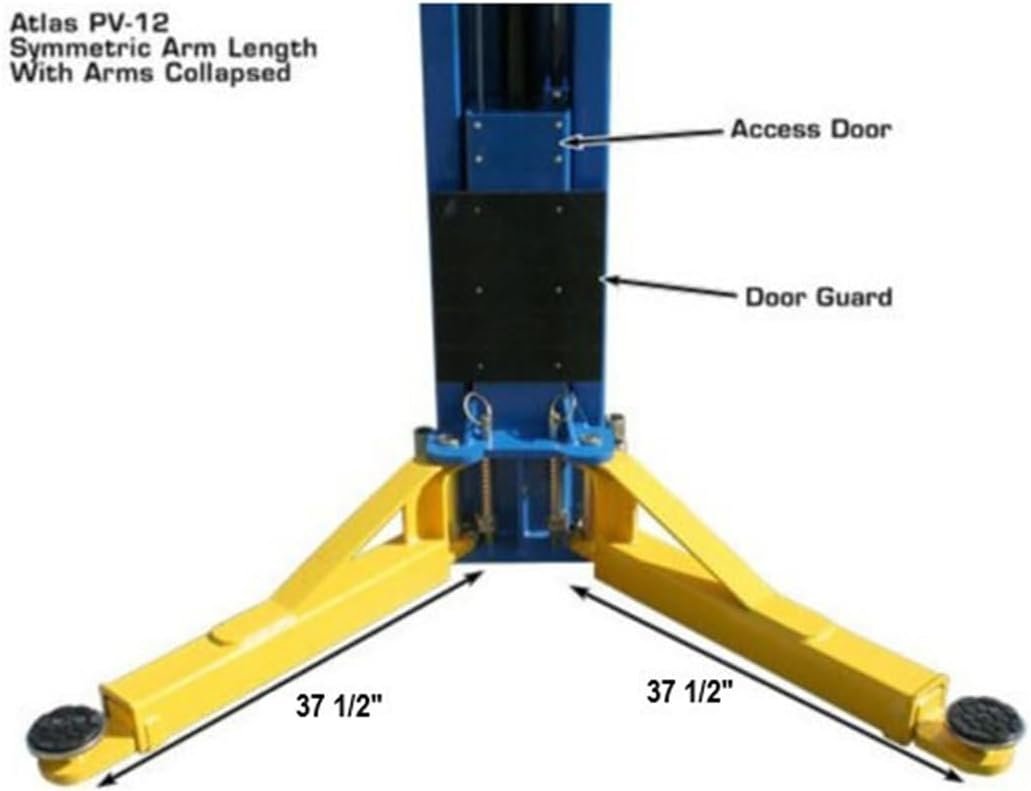

- Symmetric arms
- Automatic Arm Restraints
- Door Guards on Carriages

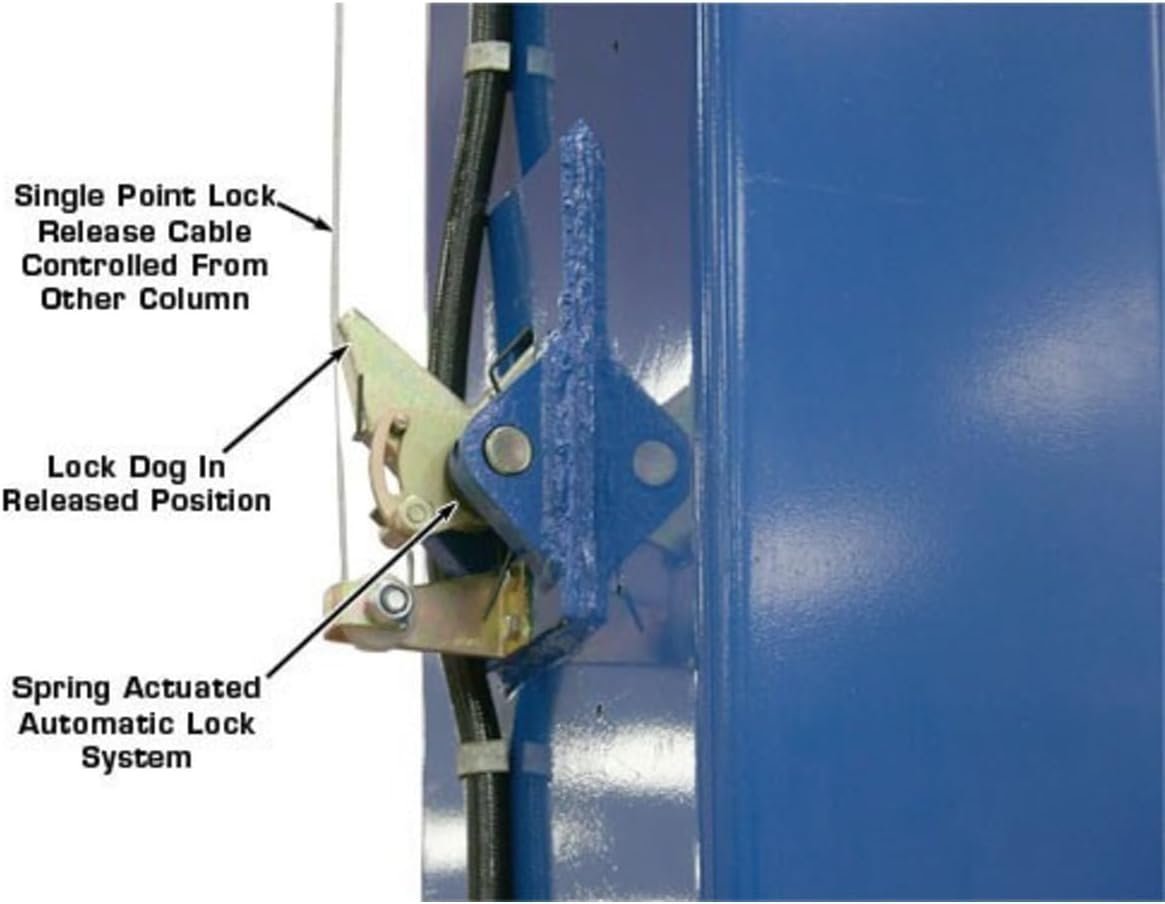

- Single Point Lock Release

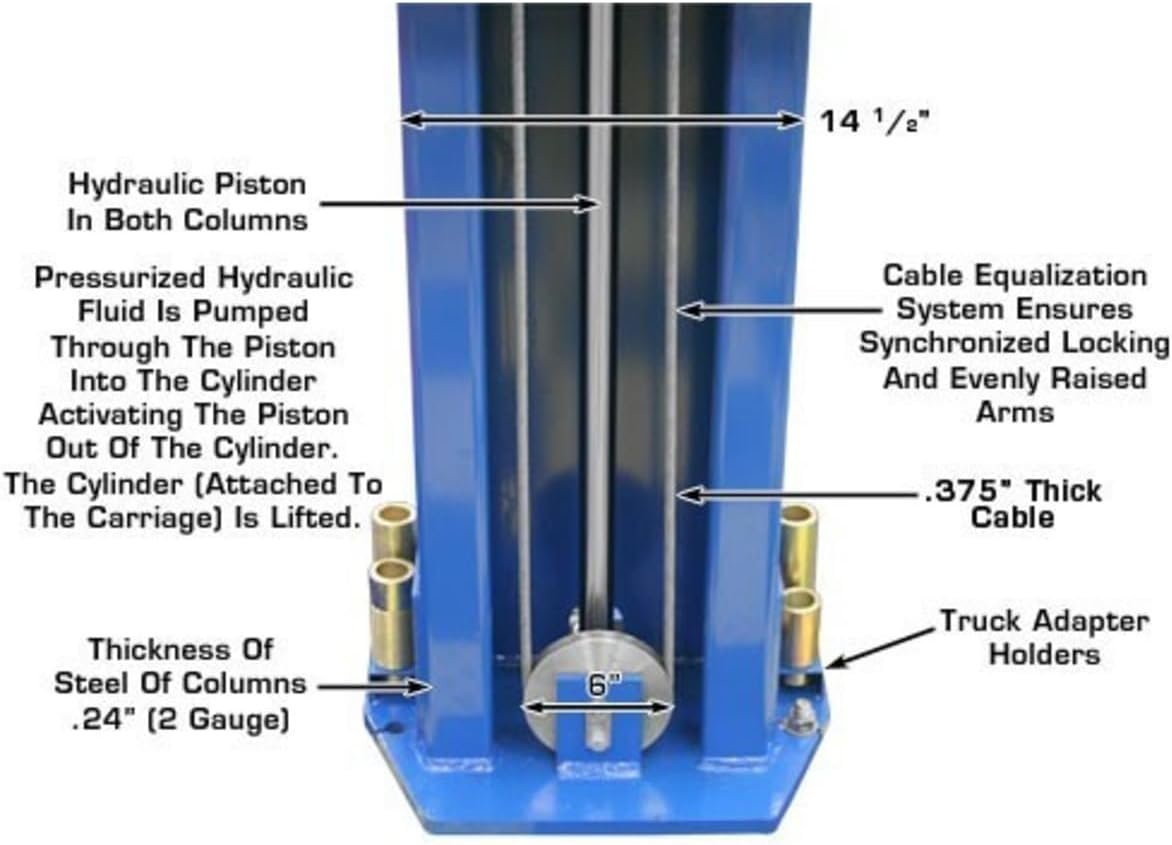

- Direct-Drive Cylinders
- Powder Coat Finish
- 12 Piece Truck Adapter Set
- Mounting Hardware Included
- 5 yr. Structural – 2 yr. Hydraulic – 1 yr.
Specifications
| Capacity | 12,000 LB. |
|---|---|
| Overall Floor Width | 150 3/4″ (12′ 6 3/4″) |
| Outside Column to Outside Column | 139 1/8″ (11′ 7 1/8″) |
| Maximum Lift Height (Without Adapters) | 72 1/4″ |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Arm Height | 4 1/2″ |
| Inside Column | 123 1/2″ (10′ 3 1/2″) |
| Drive Thru | 109 1/2″ (9′ 1 1/2″) |

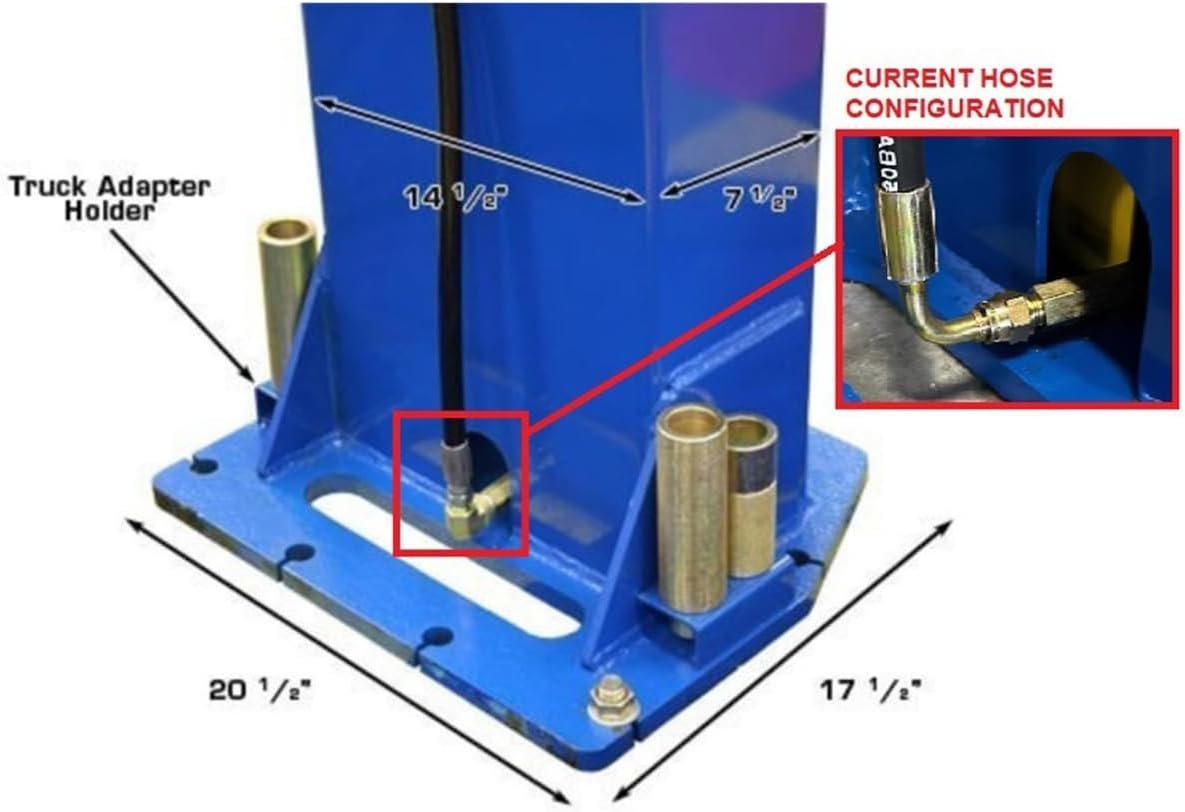

| Column Size | 7 1/2″ x 14 1/2″ |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Adapter Heights | 4 Each 1.25″, 2.5″, 5″ |
Ideal For
The Atlas PV12PX Commercial Overhead 2-Post Car Lift is ideal for professional repair shops, home garages and DIY mechanics.
